Product selling points

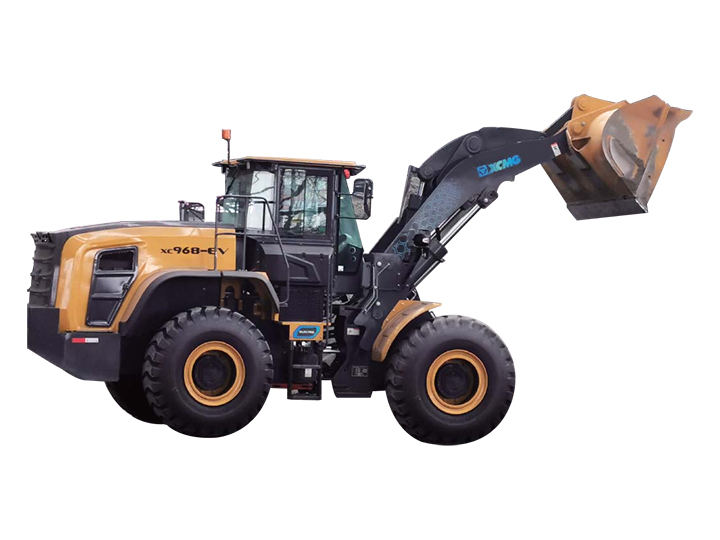

The XC968-EV adopts the whole machine without gearbox, and uses XCMG's core independent power intelligent matching optimization technology to carry out integrated intelligent control of the motor power, speed, torque, etc. of the whole vehicle, combined with intelligent thermal management system, energy recovery, three-level fault The design of functions such as safety protection realizes the intelligent, efficient and safe operation of the whole machine. It meets the environmental requirements of -40C ~ 50C, and is widely used in steel mills, power plants, coking plants, coal chemical industries, coal yards, sand and gravel materials, tunnels and other working conditions.
Product configuration
|
project |
unit |
parameter |
|
rated load |
kg |
5800 |
|
rated bucket capacity |
m³ |
3.2 |
|
work quality |
kg |
18800 |
|
motor rated total power |
kN |
270 |
|
unload height |
kN |
3370 |
|
unloading distance |
mm |
1200 |
|
wheelbase |
|
3350 |
|
wheelbase |
mm |
2250 |
|
main traction force |
mm |
170 |
|
maximum Rising Power |
mm |
174 |
|
boom lift time |
s |
9.7 |
|
three and time |
s |
28 |
|
big climbing angle |
° |
40 |
|
steering angle |
° |
18/36 |
|
forward I/II gear |
mm |
18/36 |
|
reverse I/II gears |
km/h |
8600×2996×3475 |
